Crane Cage Mesh Sides
- Product Code:
- BMP018-M

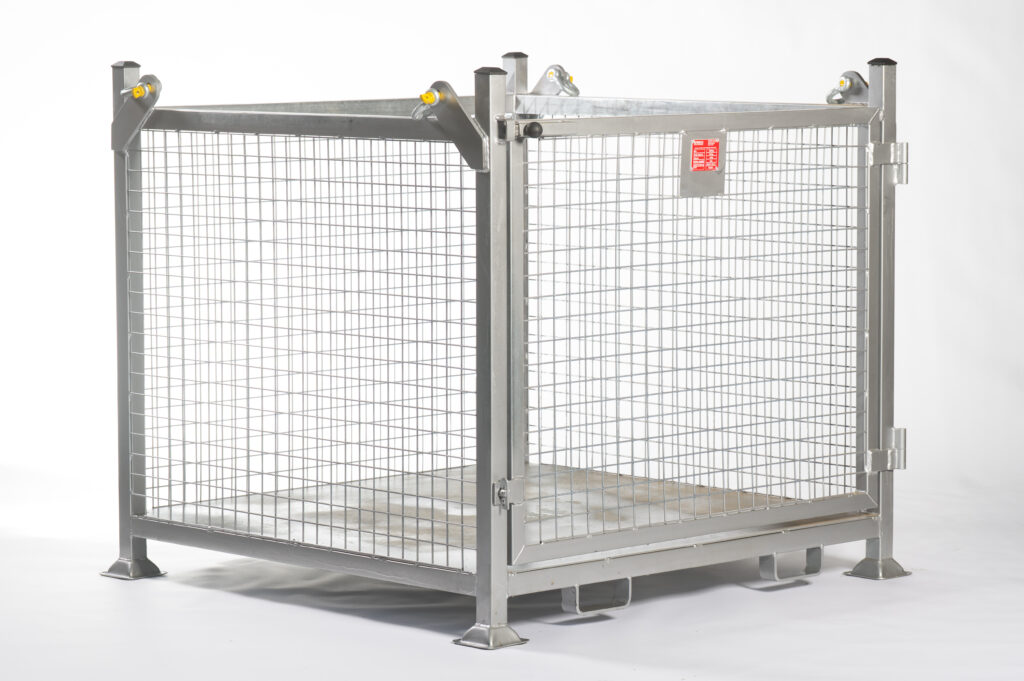

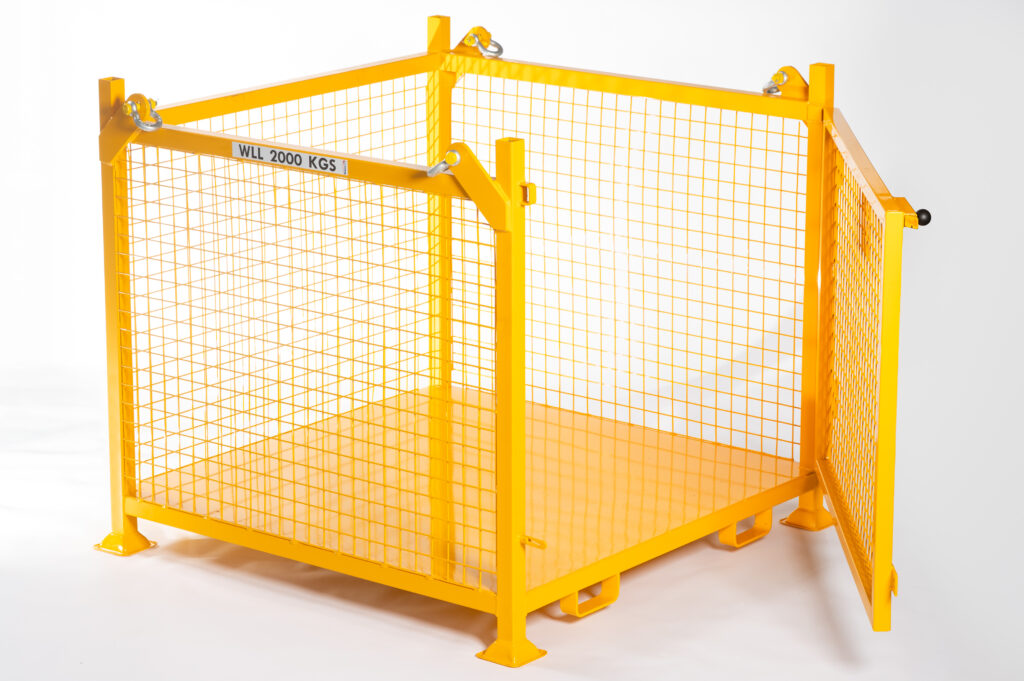

Bremco’s Crane Cage with Mesh Sides (formerly Goods Cage with Mesh Panels) has been designed and engineered for use with most overhead crane systems, and can be transported using forklifts.
Our cage has a full swing gate that allows you to place a standard timber pallet inside the cage. The gate has secure two point locking system that prevents goods from coming loose when lifted.
Our mesh sides crane cage comes in two working load limits (WLL) – 1000kg and 2000kg. Choose between Duragal/Zinc or Powder Coat (safety yellow) finish.

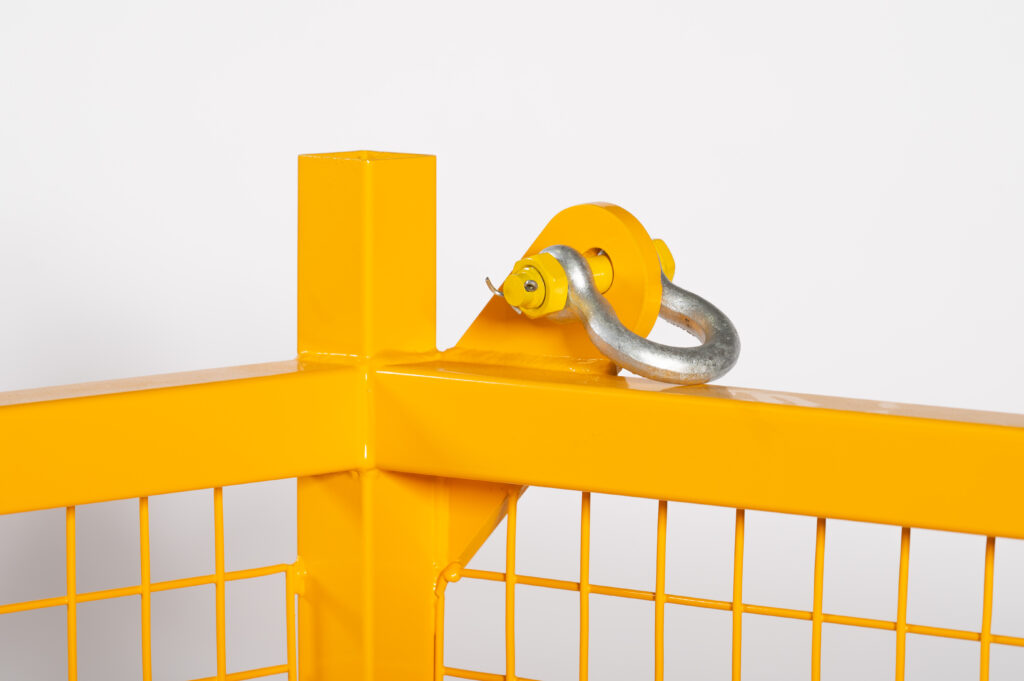

Bremco produces these cages with mesh panels on all side faces, a sheet metal floor panel, and has four lifting points fully welded into the frame that are designed in accordance with AS4991.
Description

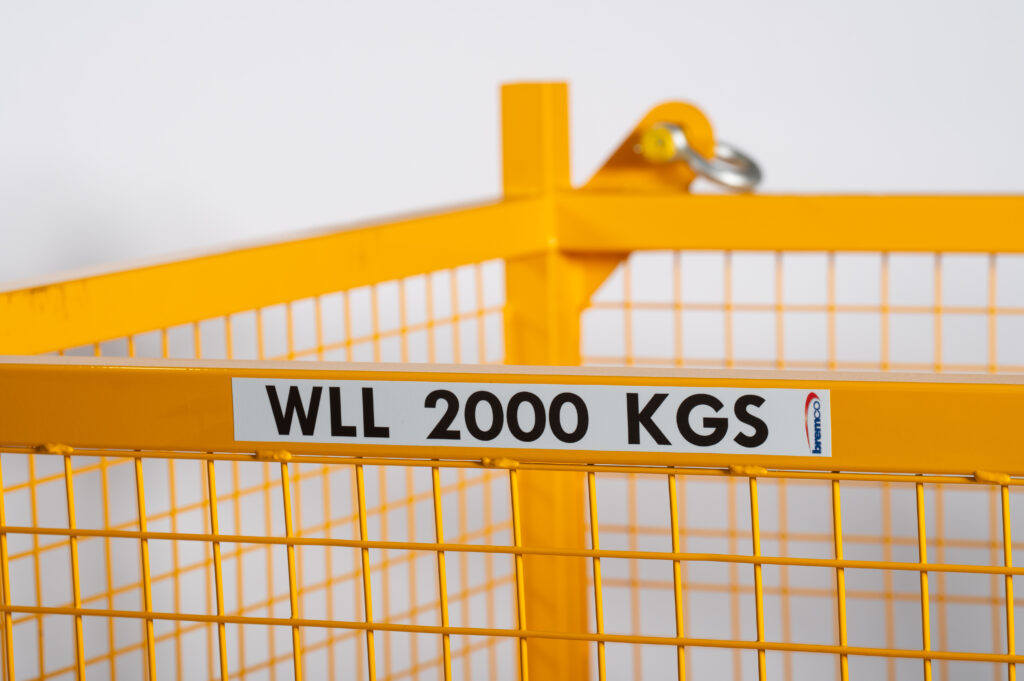

- WLL Options – 1000kgs or 2000kgs
- 1T cage weight – 170kg
- 2T cage weight – 180kg
- Frame – 1358mm SQ
- Height – 1260mm
- Mesh panels on all side faces
- Sheet metal floor panel

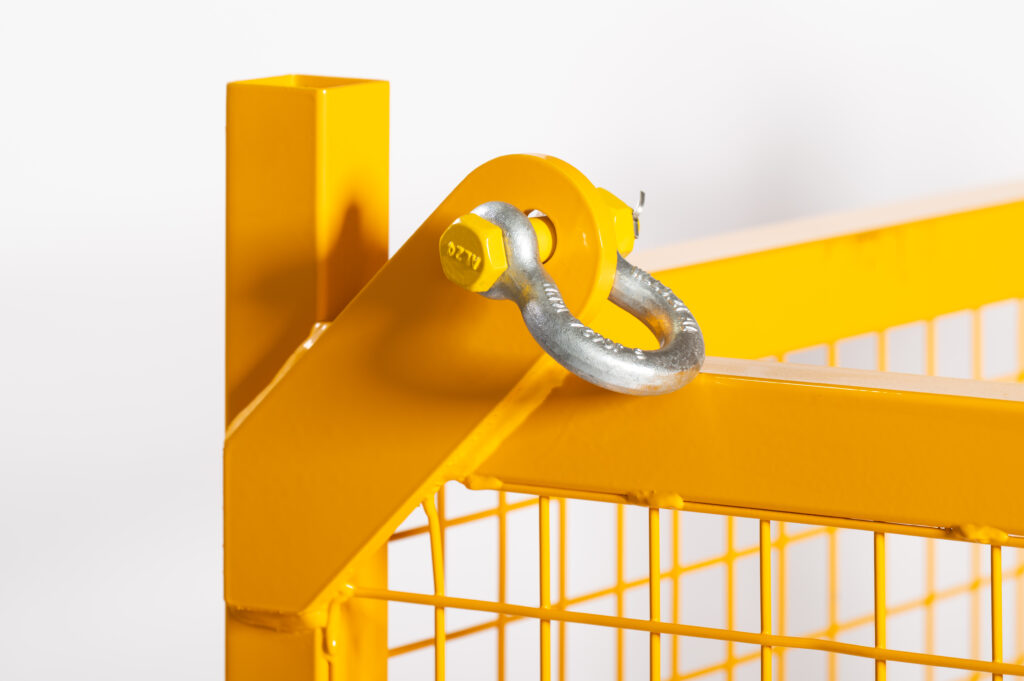

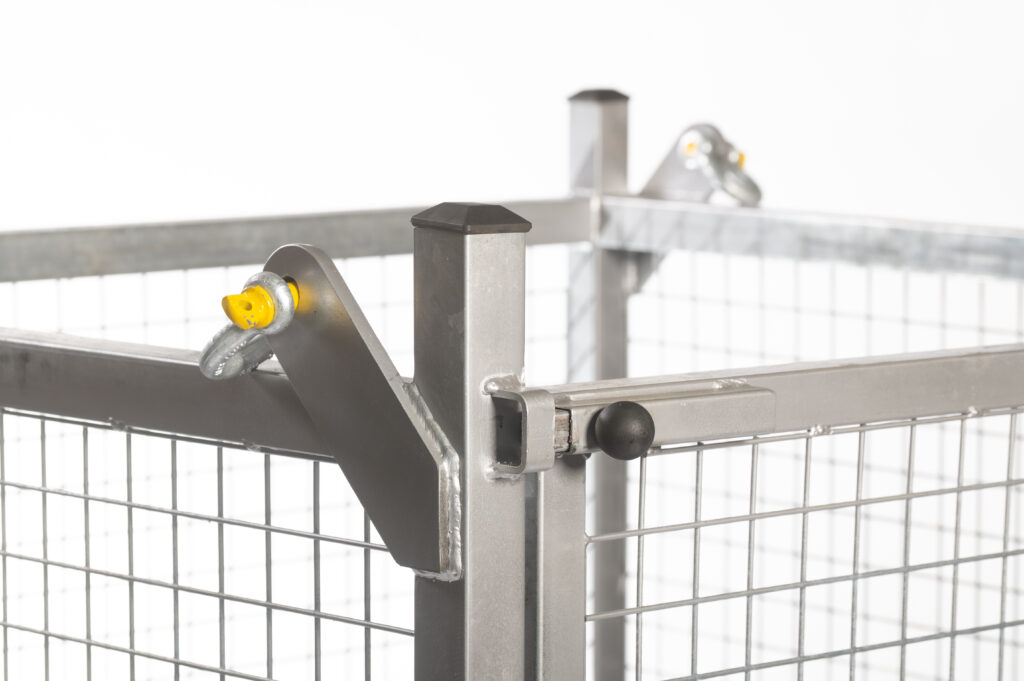

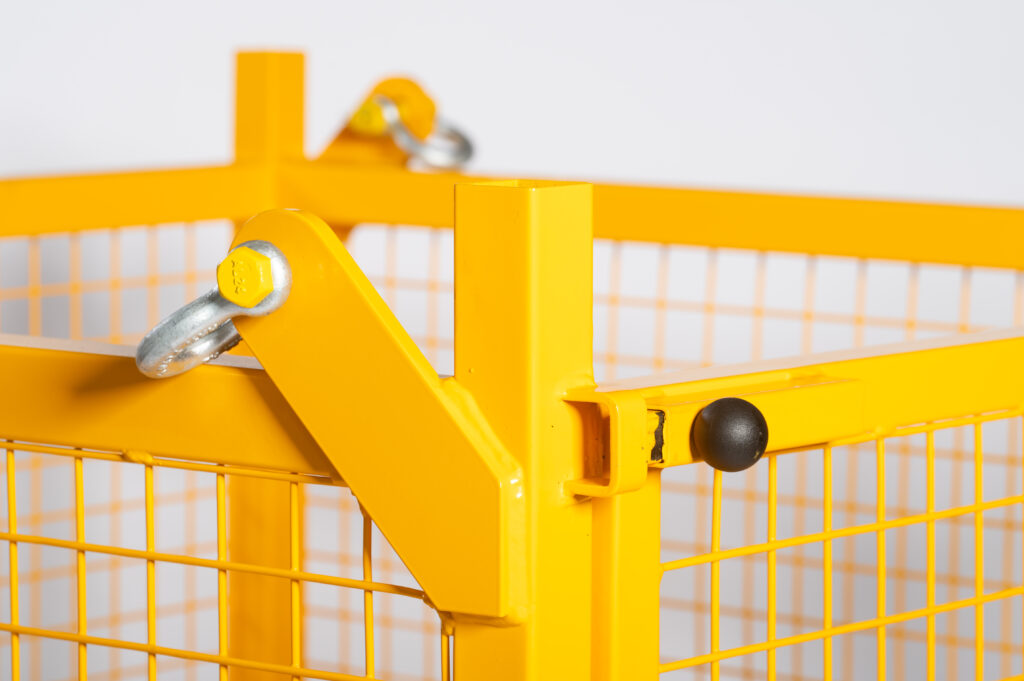

- Four lifting points fully welded into the frame
- Stackable
- Tested and tagged to AS4991

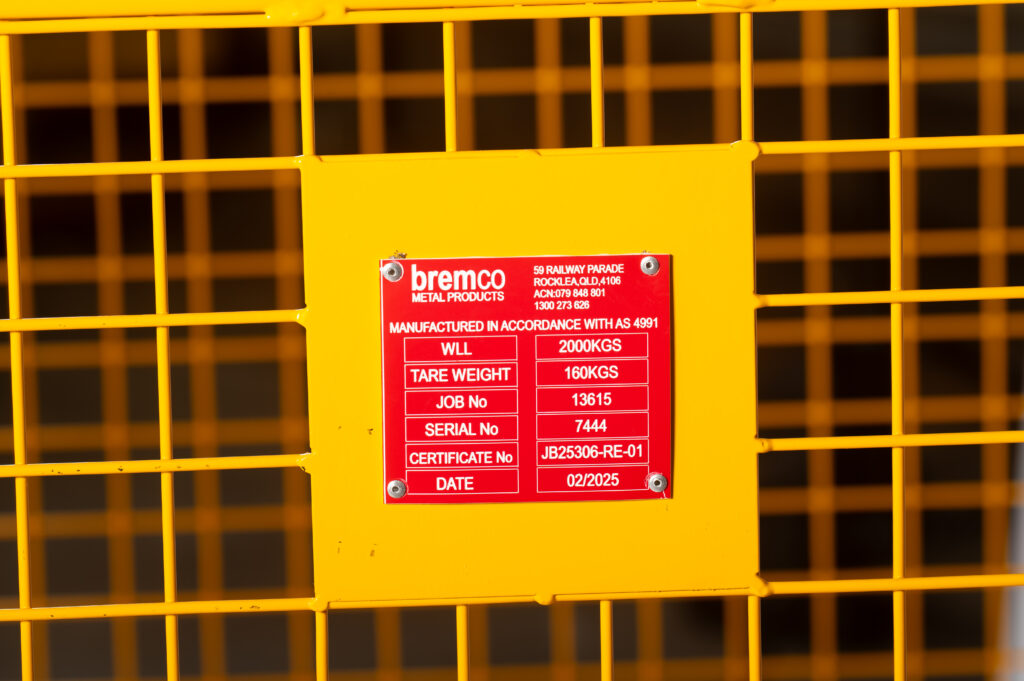

- Supplied with compliance plate & serial number

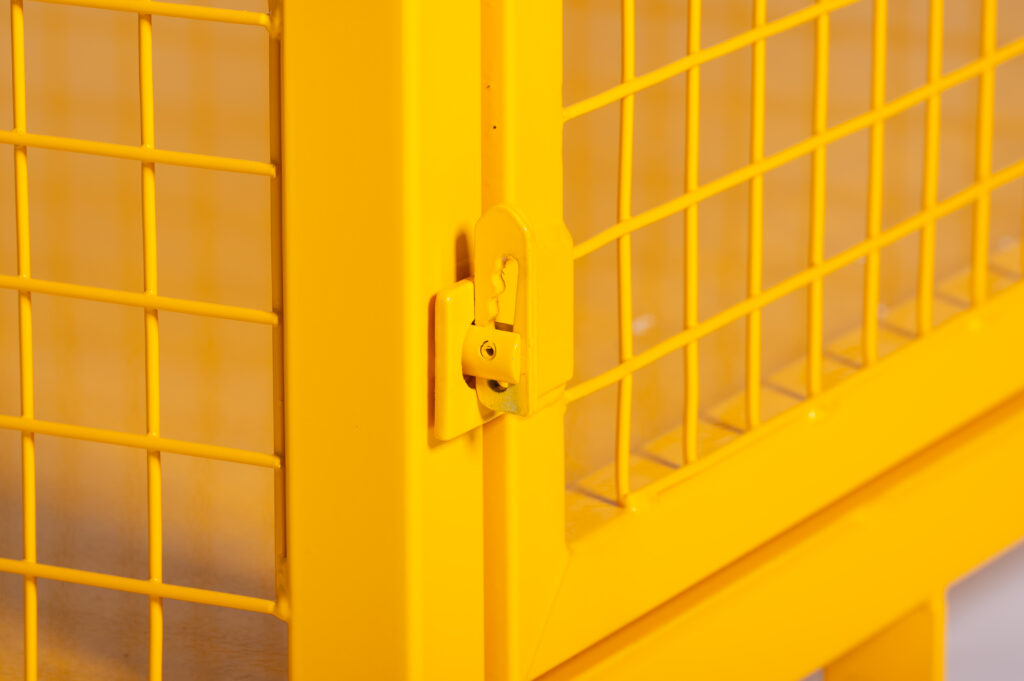

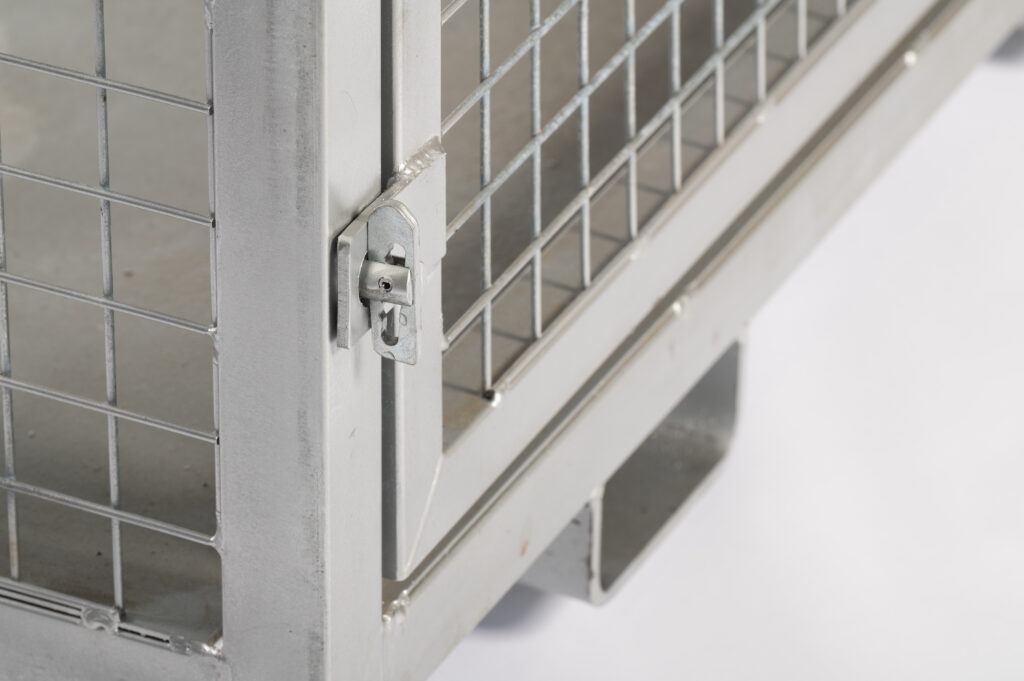

- Double latching gate

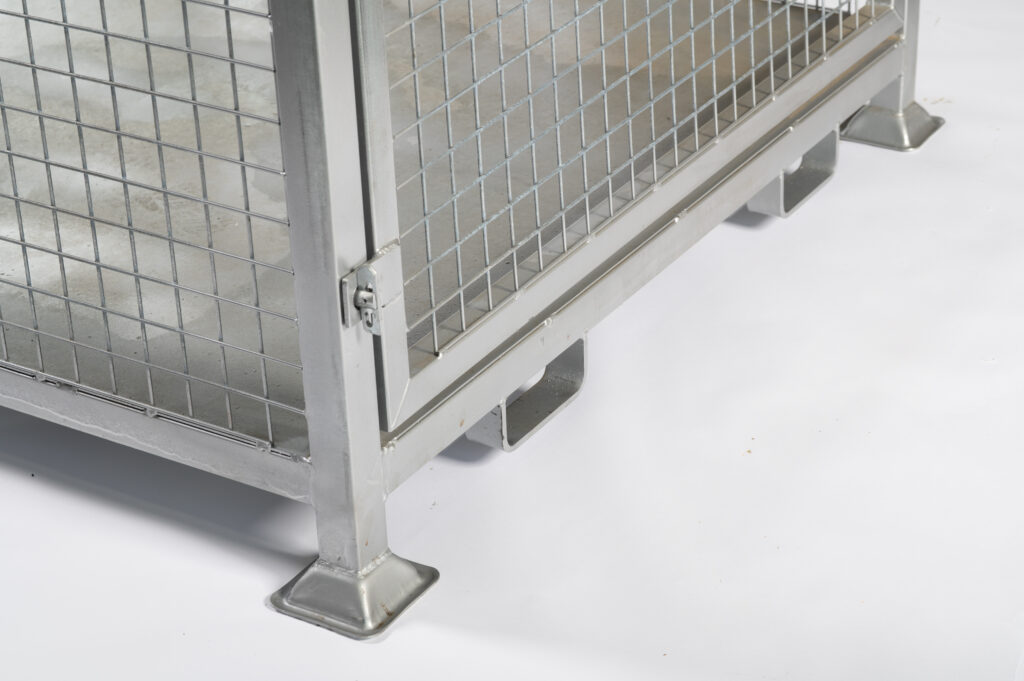

- Finish Options: Duragal / Zinc or Powder Coat (Safety Yellow)
- 4-Leg Chains are an optional extra.
Note: the Goods Cage Mesh Panel Crane Lift is not to be used for lifting staff or personnel under any circumstances.
Warranty
Bremco offers a full 12-month structural warranty on all products manufactured in our workshop – try getting that from importers! That's why Australian Made products are built to suit our local conditions. Any claim must be received within 7 days of the invoice date, and the goods returned within 14 days in their original condition.
